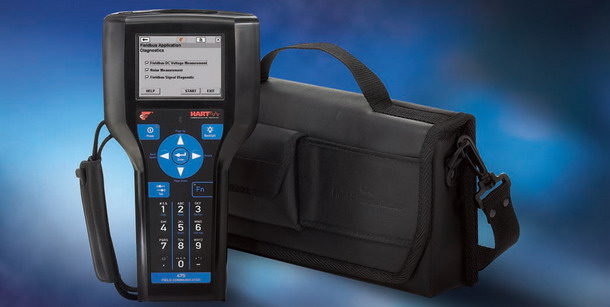

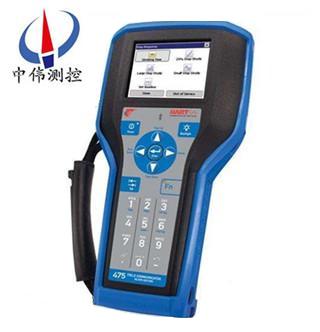

Rosemount Hart 475 Manipulator

•

Rosemount Hart 475 is an improved and upgraded version of Rosemount Hart 375. It supports both HART …

I. Product Overview:

The new Rosemount Hart 475 is an improved and upgraded version of Hart 375. It supports both the HART protocol and the fieldbus protocol. It is universal, reliable, portable, intrinsically safe and easy to upgrade. These features will quickly make Rosemount 475 a new standard.

Technical characteristics:

1. Rosemount Hart 475 is a new standard for handheld devices. It is a new generation of communicators based on the application experience of Rosemount 275 Hart communicator and Rosemount 375 Hart communicator for more than 20 years and the further needs of users.

2. Following the successful application of Rosemount 375 HART communicator, Emerson Process Management has introduced a new Rosemount 475 field communicator, which supports both HART and fieldbus communication protocols. It has the characteristics of universal, reliable, portable, intrinsically safe and easy to upgrade. These features will quickly make Rosemount 475 a new standard.

3. At present, more than 200 equipment suppliers provide more than 600 HART and FF fieldbus equipment protocols. Rosemount 475 hand manipulators support Emerson's PlantWeb plant management and control network technology, and combine 17 years to provide HART users with on-site experience in configuring and maintaining their instruments and valves. The powerful field bus branch diagnostic function of Rosemount 475 is based on Emerson's extensive experience of thousands of field bus devices worldwide.

3. Main characteristics:

Generality:

Rosemount Hart 475 Hand Operator supports all HART < and FOUNDATION Fieldbus devices. In addition, there is ample room for your future development. Users can download the latest version of HART and FOUNDATION fieldbus from the Internet to upgrade the Rosemount 475 in-situ.

Safety:

Rosemount Hart 475 is the only field operator that meets all intrinsic safety requirements. Including ATEX-compliant, CENELEC, FM, CSA and FISCO.

Firm and reliable:

That's one reason why he's called a'hand-held device'. Some work must also be performed on equipment. Rosemount 475 Hand Operator is specially designed for harsh working conditions in factories. Connect with AMS interface: Rosemount 475 hand manipulator can connect with AMS equipment management software interface. The configuration data of HART instruments and valves are transmitted between the equipment management software and the hand operater.

Functional description:

Large display screen (4 lines, 18 characters per line), large display screen (4 lines, 18 characters per line), using Chinese display, users can see at a glance, set and change conveniently.

Information self-diagnosis/protection function, self-check function, formatted password protection, low-voltage alarm display, standard technical specifications, device technical specifications

Applicable instruments: ROSEMOUNT 1151, ROSEMOUNT 3051 ABB Japan Fuji YOKOGAWA EJA (with HART communication protocol) and other imported pressure transmitters, Anke 3051, 1151, DS-1151, DS-3351 HK1151, HK3151 and other domestic intelligent pressure transmitters

Communication signal connection: dedicated cable, 1.2m (3.6ft) long, communication line: 1Km (0.62 miles) (0.75-1.25mm2)

Load resistance: 250~600_, load capacitance: below 0.22uF, load inductance: below 3.3mH, spacing with power line: above 15cm (avoid parallel line) display: 128*64 dot matrix LCD display, control: touch switch (4 direction keys, 23 function keys, one power switch)

Power supply: 4 No. 7 1.5V batteries, size: 180*80*30mm (long*wide*high), weight: 350g

5. Basic functions:

1. Setting, changing and displaying various parameters. Zero-setting additional function of constant current output in HART communication:

2. Formatting protection, need to input password to format

3. Battery alarm. The alarm information displayed by LCD indicates that the battery voltage is on the low side.

4. Normal working condition of LED backlight: ambient temperature: -15-55 C, storage condition: ambient temperature: 0-50 C

VI. Annex:

1. Communication cable: one root, each with a spring clamp.

2. Handbags, instructions (one U disk)

Technical Indicators:

Microprocessor: 80MHZ Hitachi SH3;

Interface: 3 4 mm holes;

Built-in memory: 32M;

Infrared data port: maximum speed 115 kbs/s, maximum distance 30 cm;

System card: 1GB or higher;

Working environment: - 10 - 50 degrees Celsius;

RAM: 32M;

Protection: IP51 (front);

Extension module: 32M;

Seismic resistance: 1 m landing to concrete floor is no problem;

Weight: about 0.9KG, containing batteries;

Humidity: 0-95% (no condensation);

Display: 1/4 VGA (240*320 pixels); color 8.9 cm touch screen, automatic dimming display;

Storage: - 20 - 55 degrees Celsius (with batteries);

- 20-60 degrees Celsius (without batteries);

Keyboard: 25 keys, 4 operation keys, 12 letter keys, 4 shoulders, 4 function keys and open keys;

Batteries: Rechargeable lithium-ion batteries, can be used for 20 hours, 100-240VAC charging;

Charger: Mini DIN6 core socket;

Upgrade requirements: Winxp operating system CD-ROM can connect to the Internet network.

8. The most commonly used models are:

Rosemount Hand Manipulator 475HP1ENA9GM9 (Basic Type)

Rosemount Hand Manipulator 475HP1ENAUGM9 (Upgraded in Three Years)

Rosemount Hand Manipulator 475HP1EKL9GM9 (Explosion-proof)

Rosemount Hand Manipulator 475HP1EKLUGM9 (Explosion-proof, three-year upgrade)

Rosemount Hand Manipulator 475FP1EKLUGM9 (HART+FF Protocol)

1. The basic Rosemount 475 handset includes field communicator device, system card, lead with connecting terminal, suitcase, usage introduction, user manual, 475 resource CD, stylus and installation belt.

2. Users need to consider this option after they have a Rosemount 375/475 power supply/charger. Note: Rosemount 475 hand operater battery pack can only be used with Rosemount 475 hand operater power supply/charger.

3. Fast Upgrade allows users to add new system application software and device description (DD) to the Rosemount 475 handset. If this performance is not available, the system card must be sent to the service center when upgrading.

4. For normal field applications, the battery pack can maintain power supply for 20 hours after it is fully charged. If more than 20 hours, a second battery pack is recommended.
